SCREENING AUDIOMETERS
Screening Audiometers: AIM Techs is proud to include Inventis and Amplivox as well as other manufacturers. We can provide multiple options to suit your needs
Triangle by Inventis
Download Triangle Technical Data or Brochure
Triangle is a battery-operated, portable screening audiometer, capable of performing automatic and manual pure tone audiometry exams in air conduction as well as, optionally licensed, in bone conduction. Triangle is the ideal choice for professionals on the move.
THE STATE-OF-THE-ART
Triangle represents the state-of-the-art among the screeners:
The only one with a graphical display with capacitive touchscreen
The only one with a rechargeable lithium battery
The only one featuring bone conduction with masking
…and the only one with an astonishing Italian design!
AN UPGRADABLE DEVICE
The basic version of Triangle offers manual and automatic pure tone audiometry in air conduction, with a testing range from 125Hz to 8kHz.
You can upgrade at any time your Triangle with the following optional licenses:
Bone Conduction license
To conduct pure tone audiometry in bone conduction and to enable masking signals.
Computer-connectivity license
To transfer exam results to your Maestro or Noah database.
AUTOMATIC TESTING
The Automatic Pure Tone audiometry can be performed choosing among three different protocols:
Hughson- Westlake
Quick Search
Fixed Intensity
PORTABLE SYSTEM
Lightweight and compact, Triangle is extremely handy and easily transportable even thanks to the dedicated soft carrying case included with the device. The presence of a rechargeable Li-Ion battery makes Triangle the perfect choice for professionals on the move. Triangle is also provided with internal memory to store the exams of up to 100 patients.

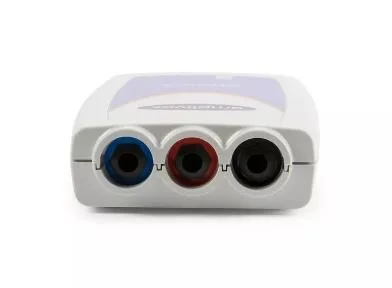

Otosure by Amplivox
Download Otosure Brochure with Technical Data
The Amplivox Otosure weighs just 165g and can be used for both static and mobile requirements. Combined with the optional Audiocups headset, this compact and neat audiometer enables the user to conduct screening anywhere that is required. A cost effective solution for the provision, storage and management analysis of audiometric test results.
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 100dBHL
'Plug and play' functionality
Pocket sized audiometer
Pure tone audiometry
Test results analysis
User defined recall facility
Identification of ‘at risk’ personnel
In-depth management analysis
Interface to E-OPAS, Cohort and Cority OH databases
Pocket sized and a weight of just 165g provide an extremely portable audiometer that can be used for both static and mobile requirements. Combined with the optional Audiocups headset, this audiometer package becomes the ultimate go anywhere, test everywhere screening package.
The Amplivox Otosure is a very cost effective solution for the provision, storage and management analysis of audiometric test results.
All tests can be reviewed in real time and on-screen comparisons can be made with previous results. The Amplivox Otosure also has a user definable recall function and extensive data analysis features that enable ‘at risk’ individuals and user defined groups to be identified and monitored.
Amplivox 116 (manual)
Download Amplivox 116 Brochure with Technical Data
The Model 116 is a portable, manual screening audiometer designed for fast and efficient screening. It is used by primary care professionals around the world.
With the optional battery function and Amplivox Audiocups, the Model 116 can be used in a variety of normally challenging environments. The simple operation including the Threshold Retention function, allow the user to quickly store results during the test. Results can then be transferred to the PC or printed.
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 100dBHL
Tone selection: Pure, pulsed, warble, continuous
Portable and lightweight design
Optional battery power option
Integrated talk forward function
Threshold retention function (during test)
Connection to thermal printer and/or PC
The 116 screening audiometer is the perfect instrument for successful screening. You can test nearly anywhere when used with Audiocups and Battery Power Option.
The control panel is intuitively laid out with a clear display and is simple to use.
The Model 116 is designed to be lightweight with a small footprint. The audiometer is supplied with a custom designed carry case which makes it easy to transport from one clinic to another.
Many of our customers choose to upgrade their package to include the Amplivox Audiocups. With these fitted, it is possible to test in far more challenging environments.
Another favourite option is the battery pack that can be added. With this, your audiometer really can test anywhere – regardless of power supply.
Amplivox 170 (Automatic)
Download Amplivox 170 Brochure with Technical Data
The 170 is a cost effective screening audiometer with both manual and automatic test functions. For efficient data management and evaluation, results can be transferred to a variety of PC applications (e.g. ampliSuite and Audibase). The results can also be printed via the thermal printer.
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 100dBHL
Pure tone audiometry
Manual pulse tone option
Portable and lightweight design
Integrated talk forward function
Threshold retention function (during test)
Internal memory, connection to thermal printer and/or PC
Connectivity to many electronic medical record (EMR) systems
The 170 audiometer is the perfect, compact, standalone audiometer. With the automatic test function, Tests are even easier to perform than on the 116 audiometer.
The 170 can store and print results. In addition, the device links to a variety of Electronic Medical Record Systems (EMR) which allow for fast and efficient results processing.
Use the included ampliSuite or connect to Amplivox Audibase or 3rd party supported EMR systems such as Noah, Cority (Medgate), OPAS, E-OPAS and Cohort to name a few.
Bell by Inventis
Download Bell Technical Data or Brochure
Bell is a screening/diagnostic audiometer, capable of performing fast and accurate air and bone threshold examinations.
Simple operation, a user-friendly interface and easy portability make Bell the ideal instrument for private clinics, multi-specialist clinics and occupational medicine applications.
Bell is available in two configurations to suit different user needs: Basic and Plus.
“BASIC” MODEL: THE SCREENER
The Basic model features manual and automatic air conduction threshold examinations at frequencies from 125 Hz up to 8 kHz with masking.
“PLUS” MODEL: THE BASIC DIAGNOSTICS
The Plus model can perform bone conduction audiometric examinations in addition to air conduction exams.
THE DISPLAY
The key feature of the Bell audiometer is its large, bright graphic color display, on which you can view the complete audiogram during the examination.
PORTABLE SYSTEM
Bell is the ideal choice of audiometer for users who need a portable instrument. Despite its practical keyboard and generous display, Bell is extremely compact and lightweight and easy to carry in its dedicated case.
MAico MA25 and MA25e
Download MA25 Technical Data
Audiometer with air conduction
11 frequencies from 125 to 8000 Hz
Pure tone, warble tone (pulsed or continuous)
Customize the frequencies to fit your needs
Portable and lightweight with only 980 g for mobile audiometric testing
Use with 3 AA batteries, with a medically approved external power supply or with a USB cable from your laptop
Small and powerful audiometer — the MA 25 is one of our smallest and lightest audiometers with a full range of testing opportunities. With only 980 g and a size that fits into your hand, the MA 25 is ideal for the use as a mobile audiometer. It is sturdy and reliable to withstand many trips to all the different locations your patients are waiting for you.
The MA 25’s frequencies range from 125 Hz to 8000 Hz and signal intensities are adjustable in 1 or 5 dB steps from -10 to 100 dBHL. Pure tone and warble tone stimulus, either continuous or pulsed, complete the screening functions of the MA25. Adjust frequencies and hearing levels easily with the user-friendly knobs.
The MA 25e includes an automatic test according to Hughson Westlake and lets you easily change parameters to match your personal preferences. With the additional talk forward function the MA 25e gets even easier to work with — especially together with noise excluding cabins. The MA 25e also brings more comfort by allowing to transfer your test results to a PC.
