TYMPANOMETERS DIAGNOSTIC/SCREENING

Screening and Diagnostic Tymanometers: AIM Techs is proud to include Inventis and Amplivox as well as other manufacturers. There are many models available to suit your needs

TImpani

Download Timpani Technical Data or Brochure

Timpani is a lightweight, compact and powerful handheld device, designed to conduct middle ear screening tests simply, swiftly and accurately. It is capable of performing automatic tympanometry exam as well as, optionally licensed, acoustic reflexes test and screening pure tone audiometry. The device features a wide easy to read full-colour display with touchscreen interface.

 THE LICENSES

Available with a range of optional licenses, the device is able to meet the needs of private medical practices, clinics and hospitals alike.

The basic version of Timpani allows performing only the screening tympanometry using 226 Hz probe tone. The optional available licenses are:

    1 kHz probe tone license - To conduct tympanometry also on children

   Reflex license (Basic) - To conduct ipsilateral acoustic reflex test at 1 kHz

   Reflex license (Plus) - To conduct ipsilateral acoustic reflex test at 0.5, 1, 2 and 4 kHz

Screening Pure Tone Audiometry - To conduct pure tone air conduction audiometry

 THE OPTIONAL ACCESSORIES

Upon request, Timpani can be supplied with its docking station, ideal to house the device, to recharge the battery and to transfer data to the PC at the same time. Moreover, it is possible to print your exam’s results directly from the device thanks to the thermal portable mini printer, available upon request too: the communication with Timpani is wireless, via Bluetooth connection.

Contact us by phone or email for more information.

Otowave by Amlpivox

Download Brochure with Technical Data

Amplivox’s Otowave 102-C is based on the bestselling Amplivox Otowave 102. Now even better, the Otowave 102-C adds a cradle for charging and data transfer to improve workflows further.

With only 3 button presses required from starting the Otowave 102-C to performing a test, this product is ready to go as soon as you need it.

The Otowave 102-C is supplied with its own Data Management Software (ampliSuite) as well as connection modules to the leading medical record systems including NOAH and AuditBase.

Lightweight and portable, the Otowave 102-C has the battery life to keep up with your whole working day.

With a charging and data transfer cradle, plus a user intuitive menu setup, the Otowave 102-C is perfect for any testing environment. As standard with all Amplivox products, everything is included, such as a carry case and all-inclusive testing setup.The Otowave 102-C has an automated pass/refer feature and is very easy to use with on-screen information displayed before, during and after the test. The compliance peak, compliance peak pressure, gradient, ear canal volume and an ipsilateral reflex test will be measured within seconds.

The programmable reflex test can be configured for one or more test frequencies (500, 1kHz, 2kHz and 4kHz) and also features a fast IPSI multi-level screening mode.

Contact us by phone or email for more information.

Flute by inventis

Download Flute Technical Data or Brochure

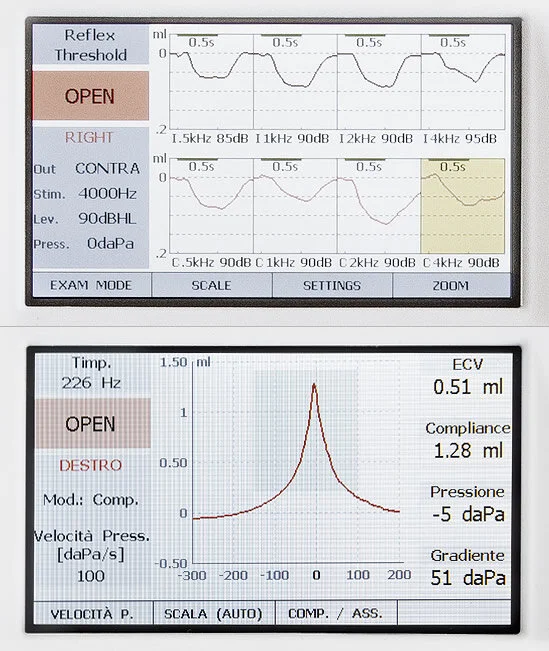

Flute is a diagnostic middle ear analyzer, capable of performing incredibly fast and reliable automatic sequences of tympanometry and reflex threshold tests, as well as manual reflex and reflex decay tests, ETF test, and high frequency tympanometry.
Great versatility, a user-friendly interface, advanced features and small size make Flute the ideal choice for a wide range of users, from hearing aid dispensers to clinics and hospitals.

THE MODELS

Flute is available in three models: Basic, Plus and HF. Please see the brochure for a detailed explanation of the features available with each model.

AUTOMATIC TEST SEQUENCES

Speed up your middle-ear tests with the two available automatic exam sequences combined with special “fast” algorithms, all accurately developed to shorten the time needed for tympanometry and acoustic reflex assessments.

ULTIMATE HARDWARE TECHNOLOGY

Flute features an innovative pump technology for continuous air flow and a finely-designed probe. All combined to fit into an incredibly lightweight (just 2 kg) case.

THE PROBE

Flute features an extremely light, small and sturdy metal probe, which can be very rapidly disassembled and cleaned. The probe is connected to the small Control Box, through which you can select the ear and start the exam.

Contact us by phone or email for more information.

Maico touchTymp

Download touchTymp Brochure with Technical Data

Our touchTymp line turns tympanometry into an intuitive, efficient and enjoyable operation. Improve your daily workflow with our full 10.4” touchscreen and a user-friendly interface that allows you to change parameters easily. touchTymp versions MI 26 and MI 36 also offer air conduction and/or bone conduction audiometry to make your work even more comfortable. Experience full control of the tympanometry probe while concentrating on your patient: touchTymp’s easy to handle probes have unique light bars providing real-time test progression.

Contact us by phone or email for more information.

Maico touch Tymp RaceCar

Download RaceCar Brochure with Technical Data

Maico’s touchTymp RaceCar makes immittance testing easy and fast by focusing the child’s attention on an exciting animated car race for the duration of the tympanometry or reflex screening procedure. The colorful animation engages the child, reducing the likelihood of breaking the seal between probe tip and ear and having to retest. This saves you time and effort, while also making the screening procedure more enjoyable for your little patient! In addition to the car race animation, the touchTymp RaceCar is available with all the protocols of touchTymp MI 24, touchTymp MI 26, touchTymp MI 34 or touchTymp MI 36.

Contact us by phone or email for more information.
